EP

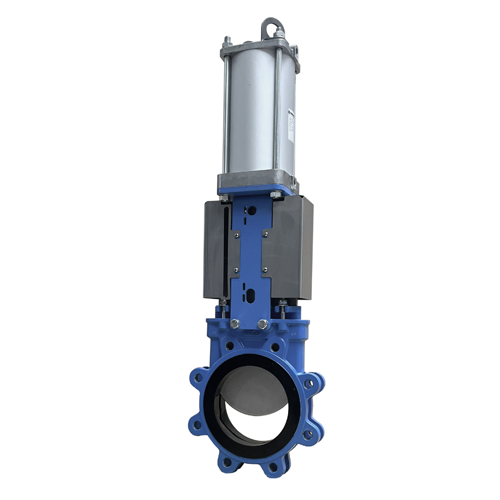

Polyurethane-lined lug type knife gate valve for general industrial applications

The EP model knife gate valve is a polyurethane-lined lug type valve designed for general industrial service applications with abrasive fluids. The design of the body and seat also assures non-clogging shut off on suspended solids in industries such as:

  • Mining
  •  Pulp & Paper
  • Power Plants
  • Chemical Plants
  • Food & Beverage
  • etc

SIZES

DN 50mm/2" to DN 600mm/24" (larger DN on request)

WORKING PRESSURE

DN 50mm/2" to DN 600mm/24": 10 bar (150psi)

STANDARD FLANGE CONNECTION

EN1092 PN10
ASME B16.5 (class 150)
Other flage connection on request

DIRECTIVES

For EU Directives and other Certificates please see the document: Directives & Certificates Compliance - Knife Gate Valves – Catalogues and Datasheets

Please contact Orbinox for information and availability of categories and zones.

Polyurethane-lined lug type knife gate valve for general industrial applications
